Overview
FeelWorld T7S Pro Overview
Monitor your 4K video signals with clarity in the field with the T7S PRO 7" HDMI/SDI High-Bright On-Camera Monitor with 3D LUTs from FeelWorld. This compact, 7" touchscreen field monitor with a durable aluminum chassis features HDMI input and output that supports up to UHD/DCI 4K60 and 3G-SDI input and output up to 1080p60.
The LCD panel features a 1920 x 1200 resolution, a 1200:1 contrast ratio, and high 2000 cd/m² brightness for a crisp viewing experience, even in sunlight. You can apply internal 3D LUTs or import up to 32 custom 3D LUTs. Numerous professional imaging tools are built-in for accurate monitoring, including waveform, vectorscope, histogram, and more. It is powered via a separately available power adapter or the rear L-series battery mount.
Quick Features
- 1920 x 1200 IPS LCD
- Intuitive button operation, easy to use
- 2000 cd/m² ultrabrightness, daylight viewable
- Rugged and durable aluminum housing
- Up to UHD/DCI 4K60 HDMI input and output
- Up to 3G-SDI 1080p60 input and output
- Load custom 3D-LUTs; preview film looks
- HDR monitoring support

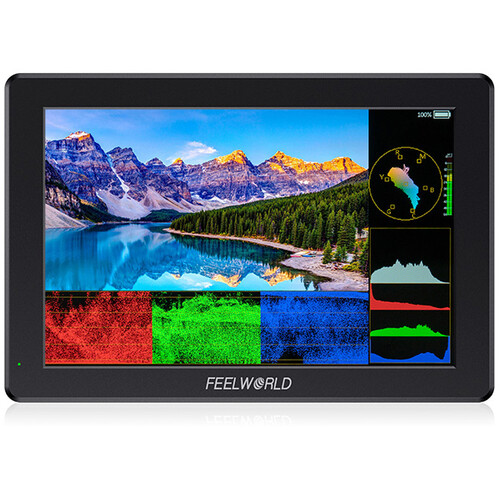

- Waveform, vectorscope, histogram, and audio meter can move horizontally and vertically onscreen
- Four-group user switching, quickly access the set menu
- 3.5mm headphone output for real-time monitoring
FeelWorld T7S PRO 7" HDMI/SDI High-Bright On-Camera Monitor with 3D LUTs
Display Size
7.0" / 17.8 cm
Screen Resolution
1920 x 1200
Image Controls
Anamorphic De-Squeeze, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Assist, Histogram, Image Flip, Image Freeze, Marker Color, Overscan, Screen Markers, Underscan, Vectorscope, Waveform, Zebra
Video
1x HDMI 2.0 Input
1x HDMI 2.0 Output
1x BNC (3G-SDI) Input
1x BNC (3G-SDI) Output
Audio
1x 1/8" / 3.5 mm Headphone Output
Other I/O
1x Mini-USB (Firmware/LUT Upload) Input
Video Format
HDMI
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
576i
480p
480i
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
Video Format
HDMI
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
576i
480p
480i
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
DC Input Power
7 to 24 VDC
Operating Temperature
-4 to 122°F / -20 to 50°C
Storage Temperature
-22 to 149°F / -30 to 65°C
Package Weight
8.8 x 6.1 x 3.2"
