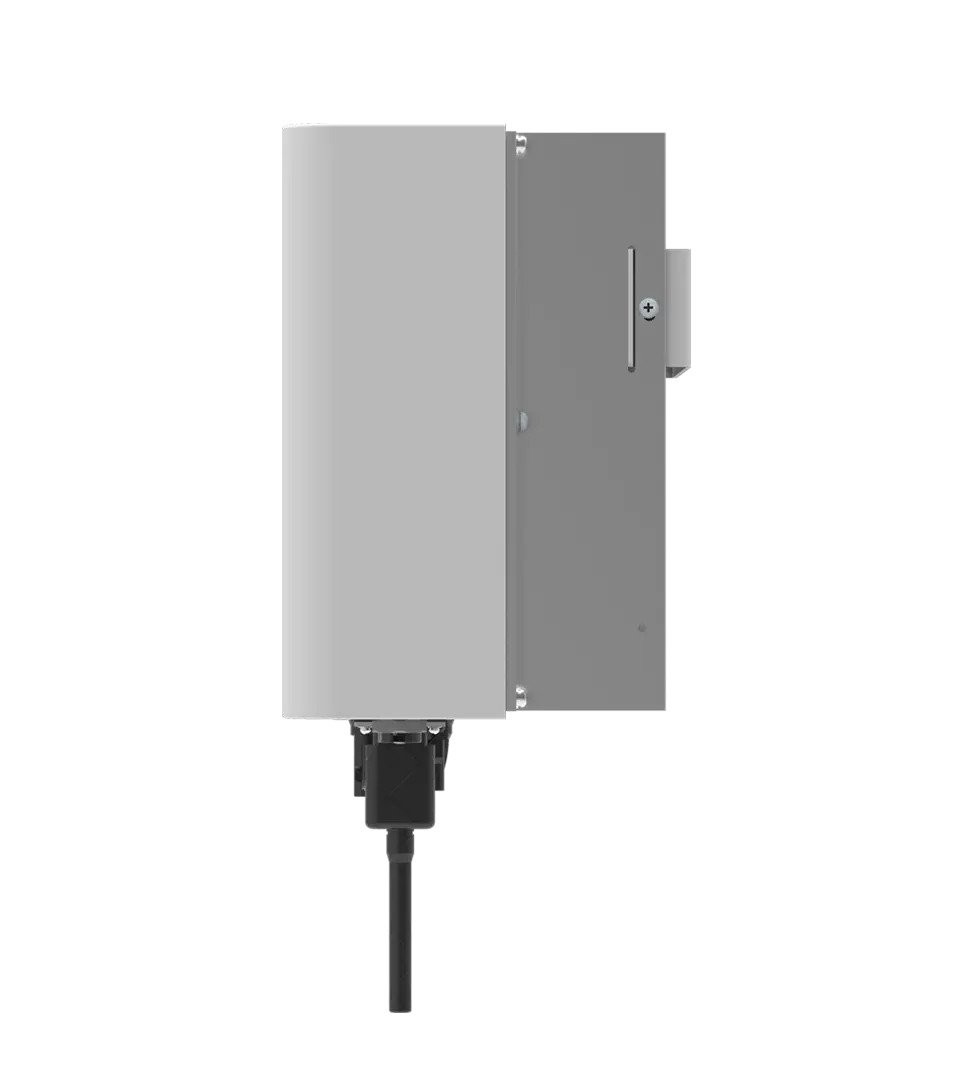

Deye SUN 5Kw-G OnGrid Single Phase Inverter
SKU #ONSUN5KWG MODEL #SUN 5Kw-G

Deye SUN 5Kw-G OnGrid Single Phase Inverter
Deye SUN 5Kw-G OnGrid Single Phase Inverter
Deye SUN 5Kw-G OnGrid Single Phase Inverter
Deye SUN 5Kw-G OnGrid Single Phase Inverter
Out Of Stock
Rs 220000 .00
Sampath Bank

Pay in 6 / 12 / 24 Months

Starting From Rs. 10,496.00
Nations Trust Bank

Pay in 12 / 6 Months

Starting From Rs. 36,667.00
Peoples Bank

Pay in 12 / 24 Months

Starting From Rs. 9,167.00

Key Features

  • Max. DC Input Power(kW) 6.5
  • Rated Output Power(kW) 5
  • Nominal Output Voltage / Range (V) L/N/PE 220/230V(Optional)
  • Operating Phase Single phase

The innovative design of the SUN5K-G is not only easy to install, but also allows for quick DC and AC connections. E.g. it weighs just 4.8 kg. Commissioning is equally easy, because the integrated user interface (local LCD display and buttons) makes it possible to choose the necessary settings quickly.

More Info

Out Of Stock
Rs 220000 .00
Sampath Bank

Pay in 6 / 12 / 24 Months

Starting From Rs. 10,496.00
Nations Trust Bank

Pay in 12 / 6 Months

Starting From Rs. 36,667.00
Peoples Bank

Pay in 12 / 24 Months

Starting From Rs. 9,167.00

Overview

Model

SUN-5K-G

Input Side

Max. DC Input Power(kW)

6.5

Max. DC Input Voltage (V)

550

Start-up DC Input Voltage(V)

80

MPPT Operating Range(V)

70-500

Max. DC Input Current(A)

13

Max. Short Circuit Current (A)

19.5

No.of MPP Trackers

1

No.of Strings per MPP Tracker

1

Output Side



Rated Output Power(kW)

5

Max. Active Power(kW)

5.5

Nominal Output Voltage / Range (V)

L/N/PE 220/230V(Optional)

Rated Grid Frequency(Hz)

50/60(Optional)

Operating Phase

Single phase

Rated AC Grid Output Current(A)

22.7/21.7

Max. AC Output Current(A)

25/23.9

Output Power Factor

0.8 leading to 0.8 lagging

Grid Current THD

<3%

DC Injection Current(mA)

<0.5%

Grid Frequency Range

47~52 or 57~62(Optional)

Efficiency

Max.Efficiency

97.5%

Euro Efficiency

97.3%

MPPT Efficiency

>99%

Protection

DC Reverse-Polarity Protection

Yes

AC Short Circuit Protection

Yes

AC Output Overcurrent Protection

Yes

Output Overvoltage Protection

Yes

Insulation Resistance Protection

Yes

Ground Fault Monitoring

Yes

Islanding Protection

Yes

Temperature Protection

Yes

Integrated DC Switch

Yes

Remote software upload

Yes

Remote change of operating parameters

Yes

Surge protection

DC Type lI/AC Type ll

General Data



Size(mm)

280W×272.5H×184D

Weight(kg)

8

Topology

Transformerless

Internal Consumption

<1W(Night)

Running Temperature

-25~65℃,>45℃ Derating

Ingress Protection

IP65

Noise Emission(Typical)

<35dB

Cooling Concept

Natural cooling

Max. Operating Altitude Without Derating

2000m

Warranty

5years

Grid Connection Standard

CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11

Operating Surroundings Humidity

0-100%

Safety EMC/Standard

IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Features



DC Connection

MC-4 Mateable

AC Connection

IP65 Rated plug

Display

LCD1602

Interface

RS485/RS232/Wifi/LAN

Deye SUN 5Kw-G OnGrid Single Phase Inverter
